Hyundai adds HX10A Z micro excavator to compact line

• Hyundai launches the HX10A Z, the smallest model in its A-Series compact excavator range, delivering leading performance and versatility.

• The machine features a powerful 7.6kW diesel engine, twin hydraulic pumps, and a retractable undercarriage allowing passage through narrow 730mm doorways.

• Its zero tail swing design, increased digging depth, longer reach, and higher dump height enhance stability and productivity on site.

• Protective design elements and an ergonomic operator station with a folding ROPS canopy improve durability, safety, and comfort.

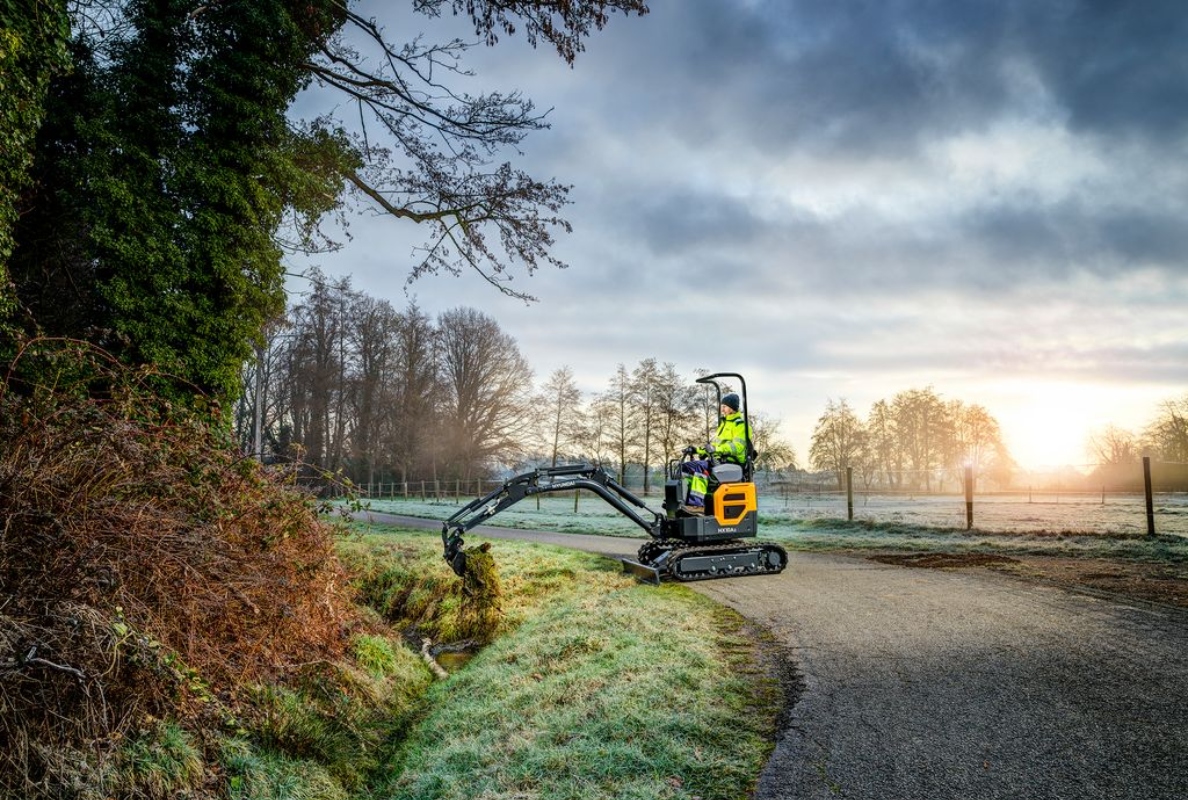

Hyundai has completed its A-Series range of compact excavators, with the launch of the HX10A Z. This micro excavator is the smallest model in the line-up, yet delivers class-leading performance, stability and versatility.

• Powerful 7.6kW (10.35hp) diesel engine

• Twin pump hydraulic system

• Retractable undercarriage permits access through domestic doorways

• Zero tail swing design for maximum safety on site

• Increased dump height and longer reach than previous model

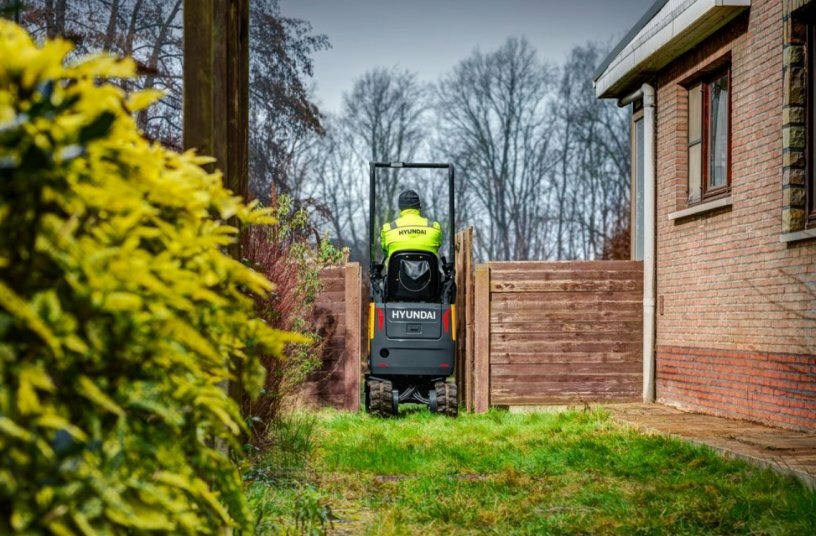

The HX10A Z tips the scales at 1,165kg, putting it at the top of the micro excavator sector. With a zero tail swing design, the compact machine sits on a retractable undercarriage. Fully retracted, the machine can pass through a 730mm doorway, yet when fully extended to 1,110mm, the machine delivers stability and productivity. This is assisted by the standard dozer blade, adding to the excavator’s versatility.

Advertisement

Power comes from a 7.6kW (10.35hp) diesel engine that delivers 39.4Nm of torque. With twin 10.4 litre/min hydraulic pumps, the machine offers up to a class-leading 10.8kN of bucket breakout force and 6.3kN of dipper arm force. Advanced rubber engine mounts reduce vibration and boost durability.

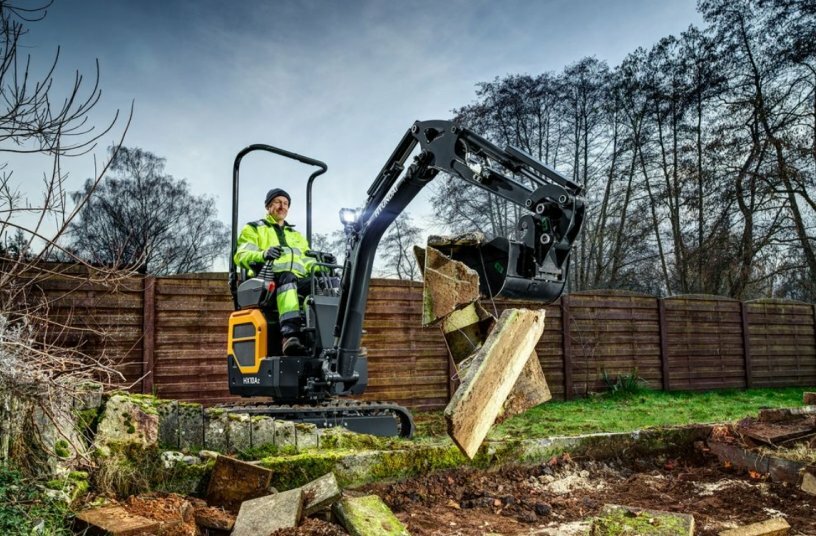

Built with a single high specification, the machine has a 1,450mm monoboom and an 890mm dipper arm. This provides a maximum digging depth of 2,205mm and a forward reach of up to 3,400mm. This increased dump height and longer reach makes it easy to load 1-tonne site dumpers and skips, while two-way auxiliary piping is standard, suitable for a variety of powered attachments.

The HX10A Z has a top mounted boom cylinder, for additional protection from damage and hydraulic hoses are internally routed for protection from impact. Front guards and LED working lights further protect dig-end components and provide improved visibility in all working conditions.

The machine is equipped with a folding ROPS canopy, for improved access and easier transportation. An ergonomic operator station has adjustable consoles and secure seating, providing a comfortable working environment.
