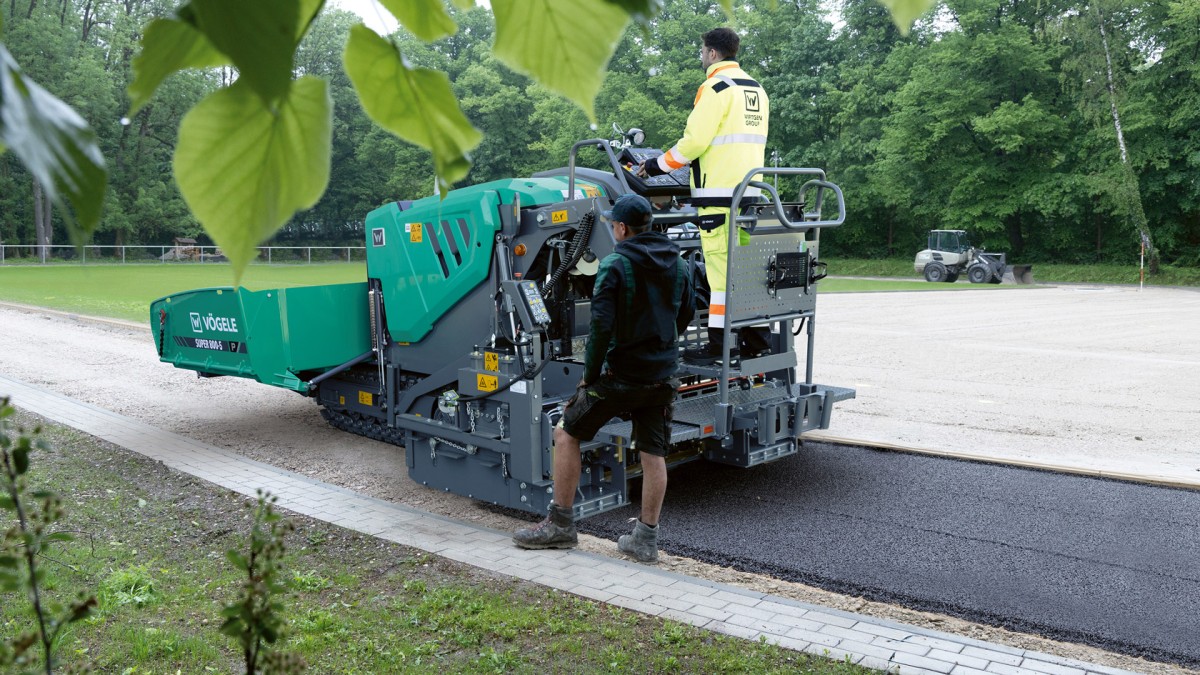

Market launch for new mini road paver

Focus on user-friendly operation

As with all pavers of the Dash 5 generation, Vögele also focuses on high operating convenience and short set-up times with the new SUPER 800-5 P. In combination with the AB 200 V and TV and AB 220 V and TV extending screeds, it offers installation widths from 0.5 m to 3.5 m – making it ideal for narrow construction projects. The successor to the SUPER 700 and SUPER 800 has an engine output of 55.4 kW, a paving capacity of up to 300 tonnes per hour and is extremely compact with a width of 1.4 m and a length of 4.4 m. Compared to its predecessors, the Dash 5 model also integrates numerous practical innovations.

Advertisement

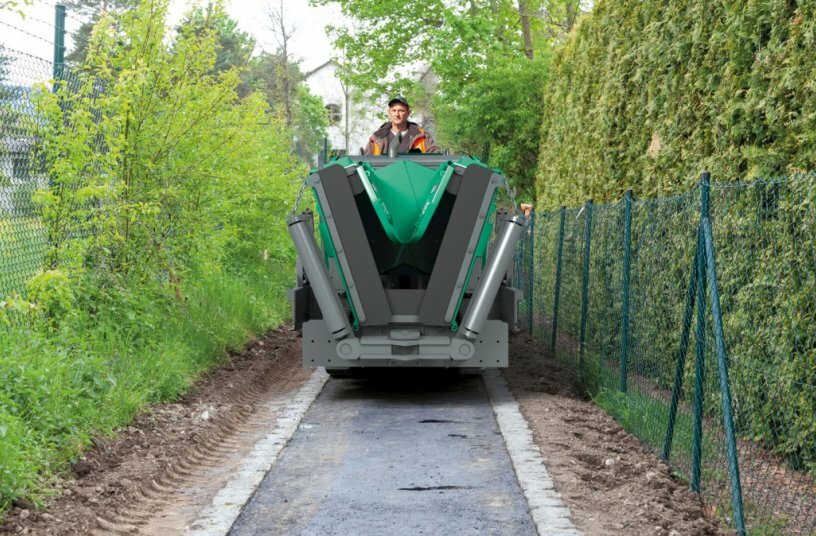

New material hopper with double folding mechanism

A major advantage of the mini paver is the newly developed material hopper: as before, both hopper walls can be hydraulically adjusted separately or together. In addition, the asymmetrical setting, for example for installation along a wall, can now be realised on both sides. The hopper walls of the new SUPER 800-5 P can also be folded twice. Together with the flat sloping bonnet, the low hopper height and the raised operator's platform, this gives the operator an unrestricted view to the front. This makes manoeuvring and loading the new Dash 5 paver much easier.

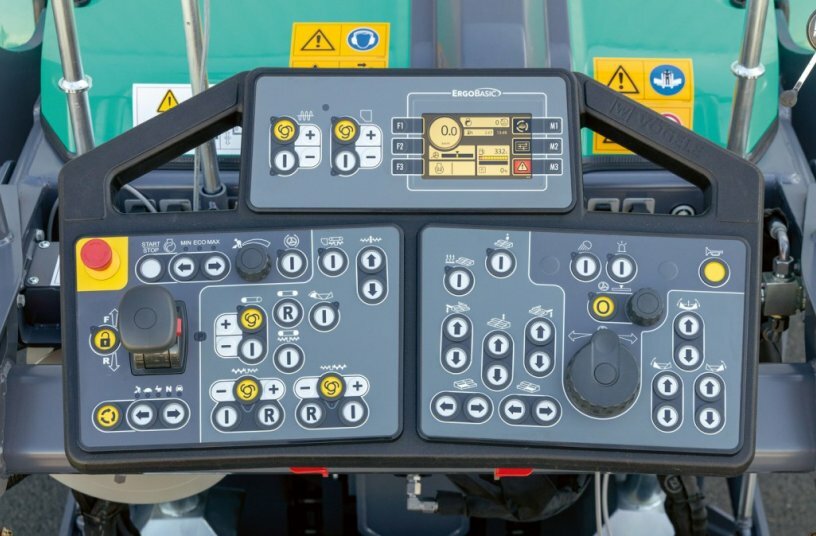

ErgoBasic 5 offers more flexibility and better ergonomics

Vögele has also improved the operating system: as before, the new operator's control console can be moved horizontally. In addition, its angle can now be adjusted in four stages and ergonomically adapted to the height of the operator. The new ErgoBasic 5 operating concept follows the operating logic of the larger machines but has been specially adapted to the mini paver. For the first time, the operator's console incorporates a display that allows the operator to view the machine's operating data. In addition, Vögele has fully integrated the operation of the Auto Grade Basic system for automated grade and slope control into the screed control system. As a result, screed operators can now control the SUPER 800-5 P in compact form with just one console - like on large Vögele pavers. A new storage system with a tool and drink holder, coat hooks, and 24-volt socket for mobile devices also ensures organization and more convenience.

New lighting concept for optimum visibility

With Light Package or Light Package Plus of the Dash 5 generation, users can pave safely, relaxed and precisely even in the dark or in poor visibility conditions. The lighting package for the SUPER 800-5 P includes LED lighting for the operator's control console, the levelling cylinder and the auger compartment. This ensures that all points relevant to the paving are specifically illuminated without casting shadows. The optional Light Package Plus also offers two LED floodlights that optimally illuminate the entire work area.
