Terex MPS to Unveil New Portable Crushers at Hillhead 2024

 WG220E Portable Cone Crusher
Terex Minerals Processing Systems (MPS) Europe
Go to photo
WG220E Portable Cone Crusher

IMAGE SOURCE: Terex MPS

  • Terex MPS will launch the WG220E Portable Cone Crusher and WV1400E Portable Vertical Shaft Impact Crusher at Hillhead 2024.

  • Both models are designed for mid-size end users, contractors, and rental companies in quarries or gravel pits, and comply with European road regulations.

  • The WG220E is ideal for secondary or tertiary processing in hard rock quarries, while the WV1400E is suitable for producing high-quality shaped aggregates and manufactured sand.

  • Both crushers feature a 5 m³ feed hopper, foldable discharge conveyor, and can be integrated with existing mobile crushing trains.

  • The new models are electrically driven, offering lower cost per tonne and eliminating diesel emissions, aligning with government environmental requirements.

  • Terex MPS plans to expand its range of electric portable crushing plants for the European market in the coming months.

Terex® MPS, a leading global provider of modular, portable, and static crushing, screening, and conveying solutions, will launch two new models at Hillhead 2024—the WG220E Portable Cone Crusher and the WV1400E Portable Vertical Shaft Impact Crusher. Both models are designed primarily for the European market.

Advertisement

Targeting mid-size end users, contractors, and rental companies operating in quarries or gravel pits, these new models are mounted on a wheeled chassis, towable by conventional trucks, and comply with all European road regulations. They excel in crushing oversize materials from wash plants or secondary/tertiary open circuit crushing. Both models are electrically driven, either from mains power or a generator.

The WG220E Portable Cone Crusher, which will be showcased at the PowerX Hillhead Stand X7, is ideal for secondary or tertiary processing in hard rock quarries, producing aggregates for construction. The WV1400E Portable Vertical Shaft Impact Crusher is suitable for producing high-quality shaped aggregates for concrete and asphalt, as well as manufactured sand and agricultural lime.

Both models feature a feed hopper volume of 5 m³ with a conveyor to feed the crusher and a foldable discharge conveyor for material stockpiling or feeding additional processing equipment. They can be integrated with existing mobile crushing trains, whether tracked or portable on wheels. The discharge conveyor can be positioned in three different orientations (left, right, or forward) to fit any current crushing setup and is designed to fold and travel with the wheeled chassis for transport. The entire setup is road transportable, fitting within standard trailer dimensions (less than 2.5m wide), and the complete chassis can also be containerised for local assembly if required.

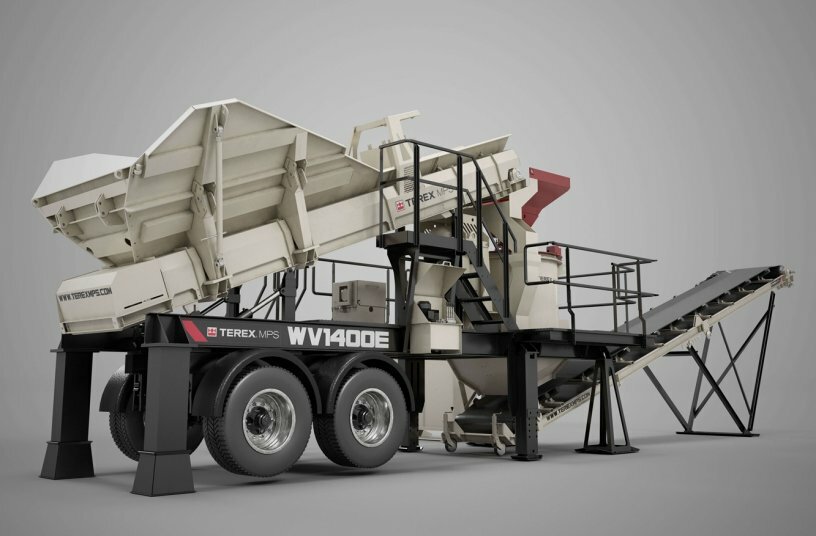

 WV1400E Portable Vertical Shaft Impact Crusher<br>IMAGE SOURCE: Terex MPS

“There is a growing demand for crushing machines that offer a lower cost per tonne compared to traditional tracked diesel crushers, especially for mid to long-term contractors,” said Paul Lilley, Sales Director, Terex MPS ERA & CATNA. “Electric machines are more efficient and have a lower capital cost due to the absence of engine and track components. With many government contracts now requiring electric drive machines for environmental reasons, our new models eliminate diesel emissions while also having lower energy consumption. The wheeled plant also provides contractors with the flexibility to move the machine between jobsites without needing a transport company with a low-bed trailer.”

Terex MPS plans to introduce additional crusher models in the coming months, based on the same platform as these two models, in a bid to provide a complete range of electric portable crushing plants for the European market.

Source: Terex MPS
