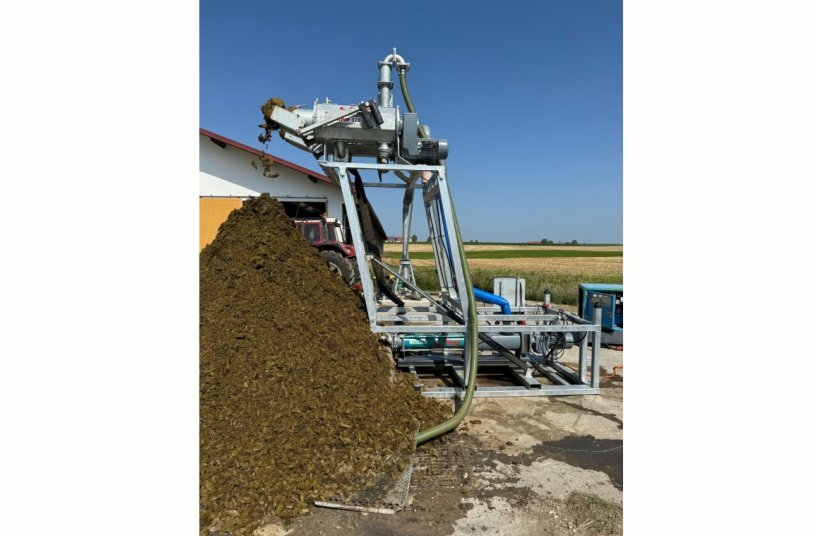

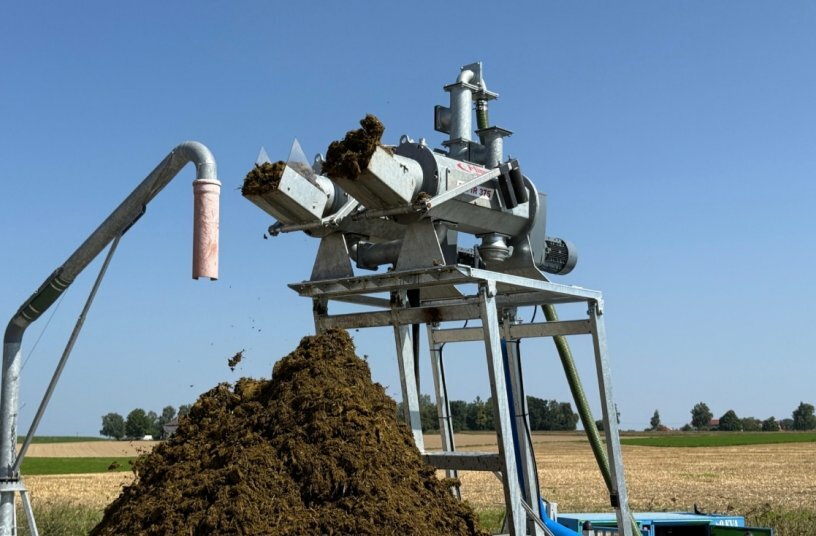

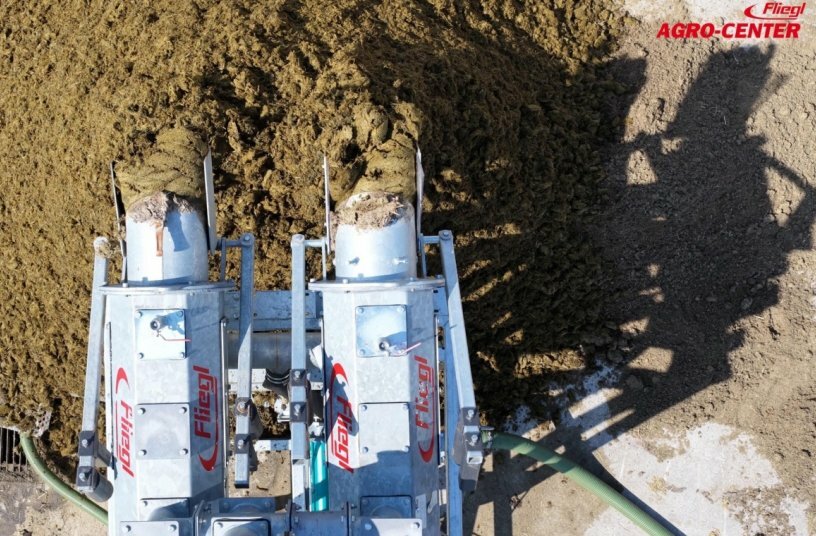

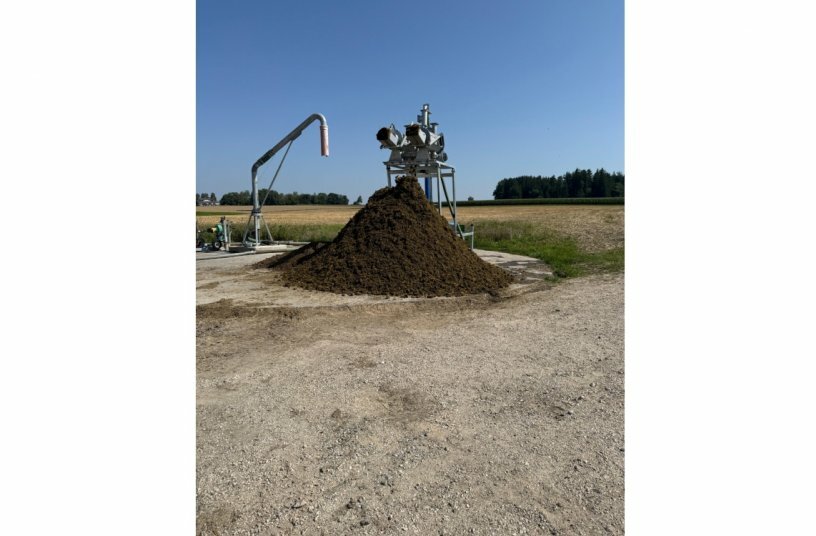

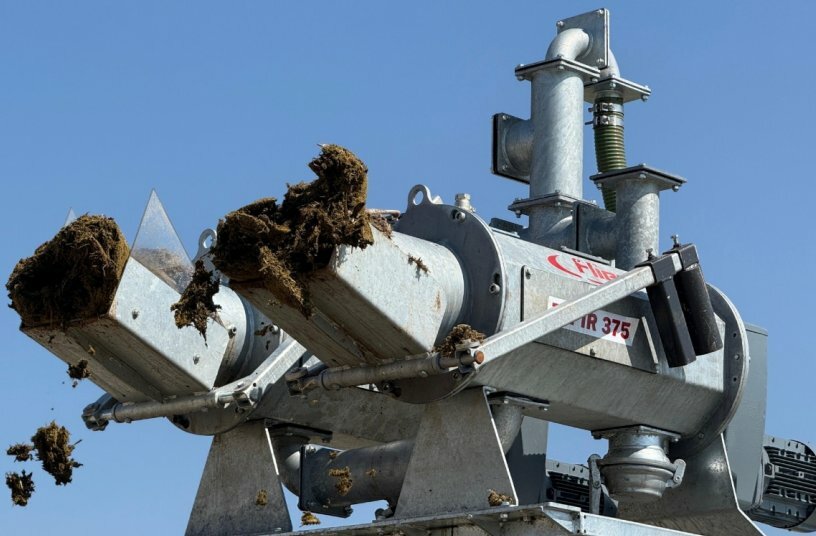

The Fliegl double separator – efficiency in slurry technology

• Fliegl introduces the double separator, enhancing slurry processing by separating solids and liquids for improved nutrient use and reduced volume.

• The machine features a hydraulically adjustable frame for easy transport and efficient filling of tall containers.

• Dual screw press separators achieve up to 40% dry matter content, producing valuable solid bedding and nutrient-rich liquid with low emissions.

• Equipped with a powerful eccentric screw pump and modern control system, it ensures high throughput, continuous flow, and reliable operation.

• Designed for large farms and contractors, it efficiently processes large manure volumes in short timeframes.

With Fliegl, you can enjoy the special advantages of further processing slurry.

Slurry processing by separation divides raw slurry into its solid and liquid components. The separated liquid can be applied with improved soil infiltration, faster nutrient availability, and lower energy consumption. This leads to considerable economic efficiency, as the volume of slurry is reduced, the effort required for stirring and spreading is reduced, and at the same time, fertilization efficiency increases.

The innovative character of the double separator lies in its flexibility. The hydraulically adjustable frame allows the machine to be quickly moved from a compact transport position (height 2820 mm) to an elevated working position (height 4370 mm). This feature not only simplifies transport, but also facilitates direct filling of tall containers, thus optimizing logistics on the farm.

The dual-system design also ensures high throughput, which reduces working time and increases cost-effectiveness. With two highly efficient screw press separators, a dry matter content of up to 40% can be achieved, allowing the solid phase to be used as valuable bedding or as transportable phosphorus fertilizer. The liquid fraction, rich in plant-available nitrogen, can be applied with low emissions.

Thanks to its powerful eccentric screw pump, the double separator has a particularly efficient suction technology. This ensures a continuous flow of material, enabling above-average hourly output when separating manure into solid and liquid components.

The separator is equipped with a modern control cabinet that serves as the central control unit for the entire system. All operating processes are monitored and controlled via this control cabinet, ensuring reliable and safe operation. At the same time, the system effectively protects the pump from malfunctions such as dry running, which increases the service life of the components.

Thanks to its increased throughput capacity, the double separator is the ideal solution for large agricultural businesses and contractors. It is particularly suitable for users who need to process large quantities of manure efficiently within a short period of time.
