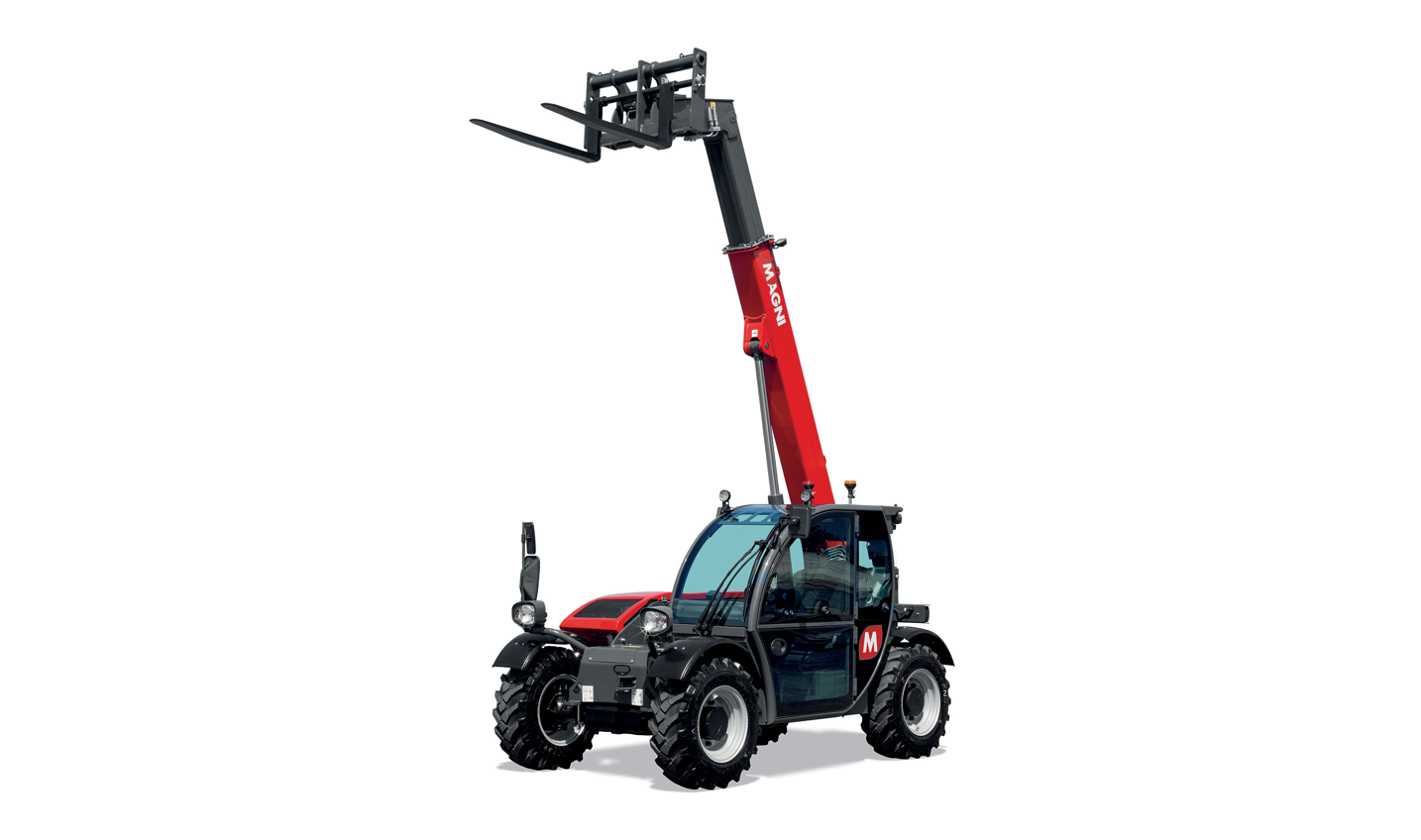

TH 3.6 E

• Magni introduces the TH 3.6 E, a compact electric telescopic handler with a 3-tonne load capacity designed for confined and noise-sensitive worksites.

• It features a lightweight, efficient 350V battery with low thermal dissipation and offers fast charging options up to 28 kW for quick energy replenishment.

• The machine combines hydrostatic transmission with an electric motor, delivering strong performance including 41 kN traction force, 83% gradeability, and 20 km/h top speed.

• Regenerative braking and boom lowering recover energy to extend range and reduce wear, enhancing operational efficiency and comfort.

• Despite higher upfront costs, the TH 3.6 E offers lower total cost of ownership than diesel models due to reduced energy and maintenance expenses, with subsidies available covering up to 80% of investment.

With a maximum load capacity of 3 tonnes, the TH 3.6 E is a revolutionary product for Magni. It combines a compact footprint with outstanding versatility and a highly efficient power supply.
Aimed at the construction and logistics sectors, its low-profile design makes it ideal for confined spaces, enclosed areas and worksites sensitive to noise and emissions.

Long lasting power and consistent performance

Advertisement

The 350V battery chosen by Magni TH is not only more powerful: it is also highly efficient, lightweight and reliable throughout its service life. Thanks to its optimised 29A current output, its thermal dissipation is up to 9 times lower than standard products. The result? A more compact system and consistent performance under even the most challenging conditions.

Hydrostatic transmission: fluidity and power

Imagine always having exactly the right power at your fingertips, without wastage. Combining a hydrostatic transmission with an electric motor offers outstanding efficiency over a wide range of speeds, guaranteeing performance comparable to combustion engine systems: traction force up to 41 kN, gradeability of 83%, and
20 km/h maximum speed. A pioneering technology in the sector, developed with major investments into R&D, combining power and sustainability.

Fast charging, efficiency and uninterrupted operation

The TH 3.6 e is the only telescopic handler on the market to offer 28 kW Superfast CCS charging: just one hour is enough to charge the system from 0 to 80%. Alternatively, a 13 kW option (3 hours) and standard 6.6 kW option (5.5 hours) are also available, depending on the application.
Intelligent energy recovery

Every touch of the brakes, every deceleration is transformed into valuable energy. The TH 3.6 e's regenerative system recharges the battery on the move, reduces brake wear and increases overall range. Lowering the boom also exploits inertia in a controlled way, resulting in lower consumption, quieter operation and, above all, outstanding comfort.

Uncompromising versatility and comfort

Enclosed spaces, urban areas, restricted worksites: with its electric power system, the TH 3.6 E opens up new possibilities, thanks to its zero emissions and minimal operating noise. For the operator, this translates into greater flexibility and improved user comfort.

An investment that pays for itself

Despite a higher initial outlay, the TCO of the TH 3.6 e, i.e. the total cost of ownership throughout its entire life cycle, is lower than that of the diesel model thanks to its lower energy costs and reduced maintenance. Not to mention the availability of state and regional subsidies that can cover up to 80% of the investment.
