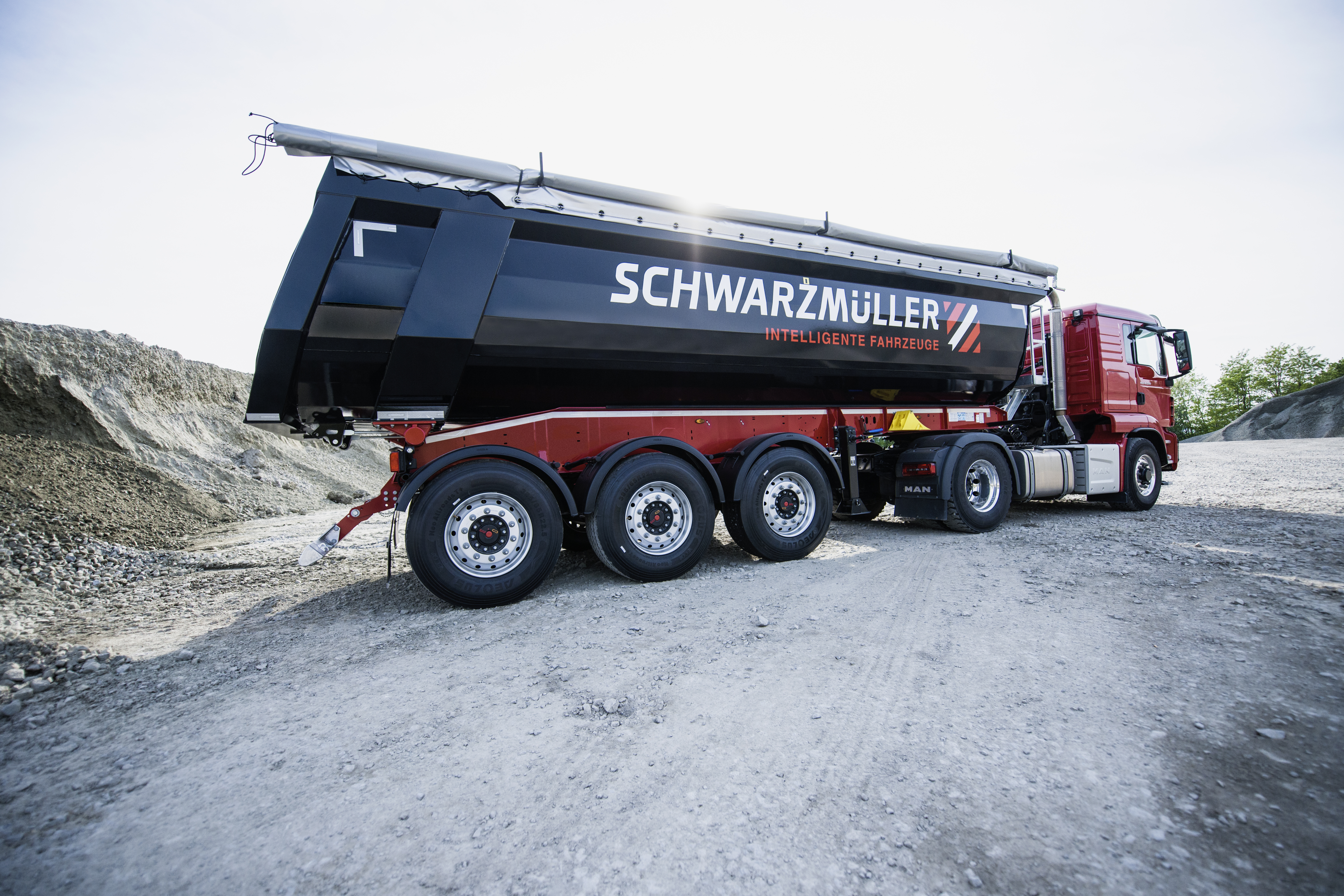

3-axle tipper semitrailer for tough everyday construction site use

• Schwarzmüller introduces a 3-axle steel segment tipper semitrailer designed for construction companies, public authorities, and bulk goods logistics providers.

• The chassis features a stable yet lightweight steel frame with additional torsion tubes and an automatic lowering device for maximum stability.

• The trailer includes a continuous tipping shaft, a special torsion box, and a segmented body with pre-bent upper belt for enhanced impact and wear protection.

• Optional features include lift and trailing steering axles, additional wear floors, a hydraulic swing-back wall, and an electric sliding roof cover.

• Technical specifications: body volume of approx. 24 m³, axle load of 3 × 9 t, empty weight of approx. 4.9 t, and a total technical weight of 39 t.

• The tipper semitrailer will be showcased at NUFAM 2025 in Karlsruhe, from September 25–28.

Schwarzmüller focuses on steel and stability

Advertisement

In Karlsruhe this year, Schwarzmüller is presenting the 3-axle steel segment tipper semitrailer, an indispensable solution for construction companies, public authorities, and bulk goods logistics providers.

The chassis impresses with its stable yet lightweight steel frame construction, reinforced with additional torsion tubes. Together with the automatic lowering device, this guarantees maximum stability even under extreme loads and on uneven terrain. This, in combination with a continuous tipping shaft and a special torsion box at the end of the frame, ensures unique stability in the tipper industry. The specially shaped segmented body with pre-bent upper belt offers the best possible impact and wear protection at the highest level.

Versatility meets efficiency

An optimal wheelbase design in conjunction with optional lift and trailing steering axles ensures maximum pressure on the fifth wheel drive axle.

The standing platform integrated into the front wall enables safe handling of the standard roll-up tarpaulin cover.

Renowned axle manufacturers such as SAF and BPW ensure proven quality in the chassis. The trailer can also be optionally equipped with additional wear floors, a hydraulic swing-back wall, or an electric sliding roof cover that can be operated by radio remote control.

Technical details at a glance

• Body volume: approx. 24 m³ (7,350 × 2,330 × 1,470 mm)

• Axle load: 3 × 9 t, wheelbase 2 × 1,310 mm, tires 385/65 R 22.5

• Empty weight: approx. 4.9 t, payload: approx. 28 t, total technical weight: 39 t

“With our steel segmented tipper semi-trailer, we are offering a powerhouse for bulk goods at NUFAM – robust technology, low maintenance, and versatile configuration options,” emphasizes Ferdinand Hamedinger, product expert at Schwarzmüller.

The tipper semitrailer can be found at the Karlsruhe exhibition center at Entrance East 1.

Visit us at NUFAM:

September 25–28, 2025 | Karlsruhe Exhibition Center | dm-arena | A 405
