Antonio Carraro exhibits at Fieragricola

• Antonio Carraro to showcase hybrid mechanical-hydrostatic and mechanical transmission tractors at Fieragricola 2024 in Verona, Italy, from January 31st to February 3rd, focusing on models specialized for vineyards, orchards, and rowed crops on challenging terrains.

• The Infinity Series, including the TR 7600 Infinity, TR 5800 Infinity, and SRG 7600 Infinity, features hydrostatic transmission, reversible steering, and advanced functions like Cruise Control and Uniflex suspension for precision work in agriculture.

• The TR 5800 Infinity is introduced as a new model with a 52hp Stage 5 engine, designed for green area maintenance and specialized agriculture, offering high maneuverability, a comfortable operator environment, and a robust chassis for heavy equipment handling.

• The SRG 7600 Infinity is the first tractor model designed for crops on raised beds in greenhouses, with features like a low driver's seat, variable track width, and high ground clearance to adapt to various crop types and ensure operator comfort.

• The TONY Series, including the TONY 8900 TRG “BASSO” and TONY 11700 V, represents the pinnacle of Antonio Carraro's production with hybrid mechanical-hydrostatic transmission, ITAC system for optimized operation, and models competing for the Fieragricola 2024 Innovation Award.

• The Mach4 TONY, a reversible quad track tractor with hydrostatic transmission and a finalist in the Tractor of the Year 2023 - Best of Specialized category, offers stability and safety in challenging conditions with minimal soil compaction.

• The Tora and Major Series, including the SRX 6800 Tora and Tigrecar 6800, provide advanced hydraulic systems and high-level operating comfort for specialized agriculture, while the Ergit R Series, like the TGF 8900 R, is designed for extreme conditions with a focus on ergonomics and traction.

Antonio Carraro is taking part at Fieragricola 2024 which will take place from January 31st to February 3rd in Verona (Italy). At Fieragricola, Antonio Carraro will be exhibiting a selection of tractors with a hybrid mechanical-hydrostatic and mechanical transmission, specialised for working in vineyards, orchards and all rowed crops even on difficult ground conditions.

Advertisement

Furthermore, for the first time in Italy, two models of the “Serie A”, traditional tractors specific for orchards and vineyards, will be presented at Fieragricola.

Hydrostatics for agricultural use

The Infinity Series

The Infinity Series models, being compact tractors with a hydrostatic transmission and reversible steering, have become increasingly popular amongst the latest AC tractors designed for precision work with technical solutions. The models on display at Fieragricola are the TR 7600 Infinity with a steering chassis, the TR 5800 Infinity, recently introduced in the range, and the brand new SRG 7600 Infinity.

The Infinity transmission is the common denominator of the range: it allows for work to be carried out in both drive directions at the same speed: from 0-15 with the mechanical working range and from 0-40 km/h with the mechanical road range. Each mechanical range comes with 3 hydraulic ranges, which can be engaged manually or with an automatic gearbox, without loss of traction. The forward motion pedal assists braking also on slopes by stopping the vehicle when it is released without using the brakes. The Cruise Control (or Tempomat), Limit RPM, Intellifix, Drive Mode, Fast Revers, and Uniflex suspension functions allow the operator to always find the setting best suited to the task at hand. The clutch, on the Infinity models, is only used for moving off and acts as a safety device should the machine need to be stopped immediately. The electro-hydraulic inverter on the steering wheel is extremely practical for forward and reverse manoeuvres, even repetitive ones, without having to use the clutch. The brakes are almost never used because the accelerator pedal not only controls forward movement but also decelerates the tractor bringing it to a standstill: the entire transmission is controlled with the accelerator pedal alone.

The TR 5800 Infinity represents a real new entry with its unprecedented 52hp Stage 5 power capacity; this model finds its greatest use in green area maintenance but it is no less suitable for specialised agriculture. It is an isodiametric tractor with steering wheels fitted with reversible steering on an RGSTM revolving control tower featuring a central tunnel, free from levers, which facilitates access aboard and guarantees operating comfort. The vehicle’s compactness, the availability of various types of tyres, including low-pressure grass tyres along with the on-board electronics run on software, determine manoeuvrability and extreme simplicity of use whilst offering full protection of the soil. The solid chassis, derived from the larger series, guarantees excellent lifting and working capacity with equipment normally considered heavy for the traditional 50 HP hydrostatic tractors currently available on the market. Its excellent stability, combined with the perception of safety renders the tractor exceptional in its category. The control functions of the torque derived from the PTO and the torque absorbed by the wheels protect the PTO and the engine even in critical situations. The newly developed hydraulic system offers up to 13 rear couplings. In the 'top' hydraulic configuration, the TR 5800 Infinity is equipped with 6 double-effect distributers, one of which has a lock position and hydraulic flow adjustment and another one is floating. There is zero pressure oil return.

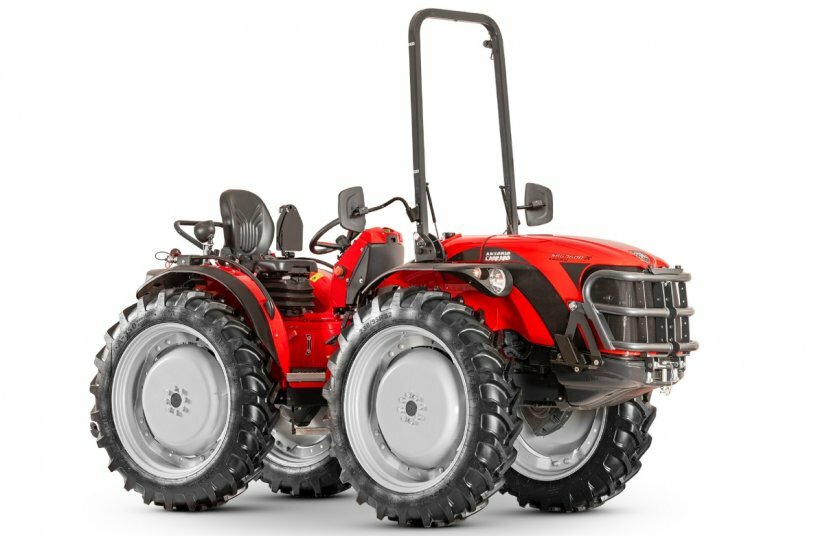

The SRG 7600 Infinity is the first tractor model specifically designed for crops on raised beds in greenhouses (vegetables, strawberries, etc.), homologated. Its acronym stands for Articulated (S) Tractor, Reversible with Large Gearbox. It is a unique tractor characterised by a low driver's seat, a ground clearance of 60 cm and a maximum wheel diameter of 32 inches. The low driver's seat prevents the operator from working in a bent over position, while the variable track width from 1.1 to 1.5 m and the ground clearance allow the tractor to adapt perfectly to different types of crops, such as cutting production or potato cultivation.

The SRG 7600 Infinity is the first tractor model specifically designed for crops on raised beds in greenhouses (vegetables, strawberries, etc.), homologated. Its acronym stands for Articulated (S) Tractor, Reversible with Large Gearbox. It is a unique tractor characterised by a low driver's seat, a ground clearance of 60 cm and a maximum wheel diameter of 32 inches. The low driver's seat prevents the operator from working in a bent over position, while the variable track width from 1.1 to 1.5 m and the ground clearance allow the tractor to adapt perfectly to different types of crops, such as cutting production or potato cultivation.

All this translates into excellent performance in the most difficult working situations.

The TONY Series

The best of the AC hydrostatics

The TONY Series is the star of the show at Fieragricola. It is made up of models with a hybrid mechanical-hydrostatic transmission run on software and the latest TONY 8900 TRG “BASSO” model with different-sized steering wheels in competition for the Fieragricola 2024 Innovation Award; TONY 11700 V and TONY V super narrow 1m, which are all conventional-frame tractors; Mach 4 TONY, the first and only reversible quad track with a cab, an articulated-frame and a hydrostatic transmission, which was a finalist in the Best of Specialized category for Tractor of the Year 2023 and last but not least our famous isodiametric, reversible TONY 8900 SR with its articulated chassis.

The TONY Series represents the cutting edge of AC production. It consists of models with a hybrid mechanical-hydrostatic transmission run on software with SIM - Shift In Motion technology: it offers 4 electronically controlled speed ranges, which can be engaged from a standstill or on the move. It is its compact transmission with automatic functions managed by the ITAC (Intelligent Tractor AC) operating system, such as the Tractor Management Control (TMC), that simplifies all driver operations. This centralised control is designed to ensure that the tractor is always working in optimum conditions, in terms of cost savings and productivity. The system guarantees several functions, including maintaining its parameters while at work, even during changes in uphill and downhill slopes. ITAC contains all the safety systems and monitoring of the tractor’s diagnostics for scheduled vehicle maintenance. The operator can set, customise and save the parameters for each task and access any chosen combination when necessary as well as make any changes during the various phases in accordance with any variation in the terrain and type of cultivation. Its speed is independent of the engine revolutions: both can be programmed separately. The speed range is from 40 m/h to 40 km/h.

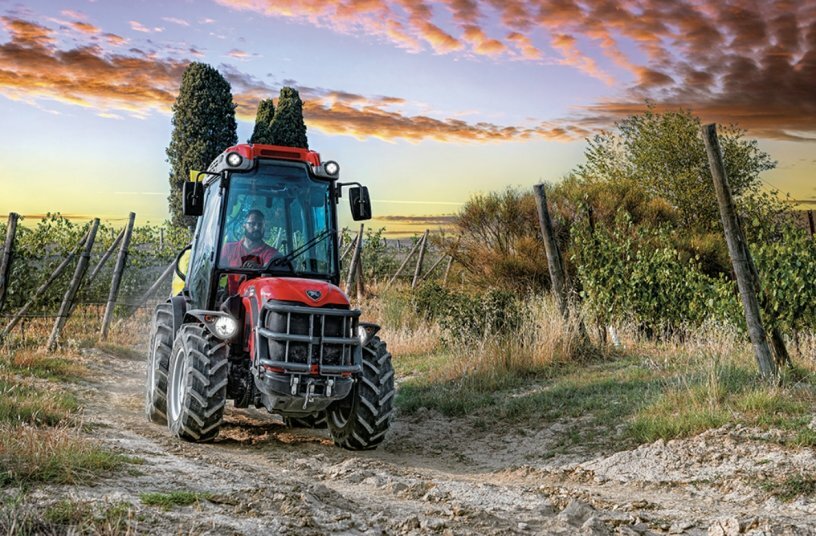

New TONY 8900 TRG “BASSO”

The TONY 8900 TRG LOW is a specialised, steerable, reversible tractor with different size wheels and a hydrostatic transmission, specialised in the cultivation of citrus crops, olive groves and orchards, as well as working in vineyards on steep slopes. This tractor has different size wheels which provide excellent traction and ground grip even on extremely steep slopes, and having smaller front wheels allows in addition for very precise steering. It is fitted with a Kubota 4-cylinder, electronically injected engine with 74.2 hp and a torque of 305 Nm at 1500 rpm. Add all these features together and you have a compact, stable tractor with excellent ground clearance and optimum power at low engine revolutions, which translate into greater comfort thanks to reduced vibrations and very low noise levels. This tractor was designed to have a very low centre of gravity and consequently it has the lowest driver's seat on the market.

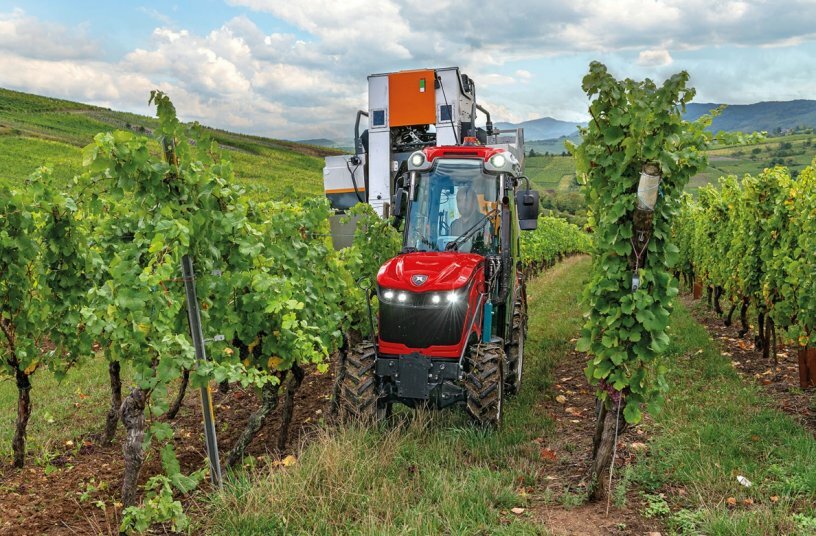

TONY 8700 V / 11700 V

New hydrostatic conventional-frame tractors

A finalist in the prestigious Tractor of the Year 2021 awards with the 8700 model and quoted as “new product” at Sitevi Innovation Award 2023 with the 11700 model, the Tony V represents the first conventional-frame, mono-directional, cab-mounted AC tractor and thus expands the already vast choice of 'tailor-made' models for each and every AC customer.

The TONY V are versatile tractors, designed for rowed crops and are specialists in carrying out precision tasks by operators who need to work with a combination of different equipment. Operating comfort is provided by a spacious driver's seat with ergonomically positioned controls and digital functions that simplify the task at hand. Furthermore, the machine's versatility of use is ensured by the possibility of being able to fit rear, front and ventral pieces of equipment. Its design and construction make it particularly agile in places where manoeuvrability and trajectory precision are crucial.

They are now available in two Deutz, direct-injection, Common Rail, 4-cylinder, 16-valve, 2924 cc turbo diesel engines with intercooler. For both versions the dimensions remain compact, with a minimum width of just 980 mm.

Tony 8700 V > Max. power 75hp at 2000 rpm/ Max. torque 375 Nm at 1400 rpm

Tony 11700 V > Max. power 110hp at 2000 rpm/ Max. torque 420 Nm at 1600 rpm

The hydraulic system consists of mechanical gear pumps and a variable piston hydraulic pump. Load-sensing management and an oversized pipe circuit reduce pressure losses enabling it to operate at low engine revolutions with high hydraulic flow rates. It offers a solution that drastically lowers the environmental impact (CO2) by reducing fuel consumption. The hydraulic tank capacity is 35 l and has two Zero-Pressure outlets: one at the rear and one on the ventral section. Its hydraulic flow goes up to 137 l/min (with extra flow) and has a variable displacement pump that is only activated when in use. The hydraulic system offers up to 9 independent electronic double-effect distributors (4 rear and 5 ventral).

The TONY V tractors come fitted with the AIR V cab as standard, which features the most technologically advanced driving position in the entire AC range. The driving position is located on a spacious platform suspended on silent-blocks. The low centre of gravity and minimalist central tunnel grant the operator easy access and a comfortable, anti-fatigue position. While at work, there is a direct view over the rear equipment, which gives the operator the sensation of being “above” it. The smaller front wheels provide a steering angle of 55° with an extremely tight turning circle and up to 10° oscillation. The cab with four uprights is spacious and equipped with every comfort; it provides automatic climate control that can becontrolled from the digital display on the driver's console. It is pressurised in Cat. 2 or 4 and is FOPS and ROPS approved.

All the headlights for traffic circulation are LED and the rear ones are integrated into the roof: their raised position is useful for increasing visibility in the space around the tractor, even with mounted equipment. The rear-view mirrors can be adjusted electrically, as an optional extra.

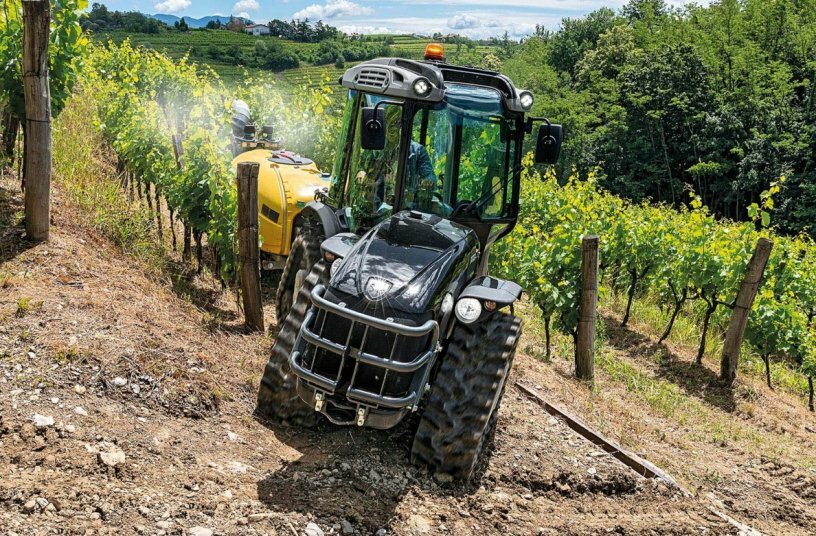

Mach4 TONY

Quad track with hydrostatic transmission - FINALIST Tractor of the Year 2023 - Best of Specialized

Available with two engines at 73.2hp Stage 5 and at 96.7hp 3B for the Italian market, the Mach4 TONY is a unique model: it is a reversible quad track tractor, fitted with 4 rubber tracks with a minimum width of 1300 mm, that has a hydrostatic transmission on an articulated chassis. It comes with a pressurised and air-conditioned AIR cab with ROPS - FOPS Cat. 4 certification. It is a tractor with interconnectable electronics suitable for Agriculture 4.0 that can guarantee maximum efficiency in crop spraying while respecting the soil cover in sophisticated organic farming processes. This tractor adapts well to working conditions that other tractors find impractical, offering stability and operational safety at the highest level.

The 4 tracks are an AC solution developed and tested in 2007, which has seen the introduction of the new rubber "Tracks" capable of high performance in the field, with minimum soil compaction and capable of excellent performance when carrying out tasks on vertical or lateral slopes, on slippery terrain, in mud and on sand. Its maximum speed with road homologation (not given to classic tracked vehicles) is 30 km/h.

The Super-Compacts with mechanical gearbox

The Tora Series

The 50 - 66 hp Professionals

The Tora Series offers unprecedented technical solutions and hydraulic capacities for the 50 to 60hp power range. The Gearbox and PTO are the same as those used in the AC flagship Series. The driver's seat is placed on a platform suspended on silent-blocks to ensure maximum operating comfort. The overall dimensions are extremely compact in all the models with both 52 and 66hp engines, available in 6 different configurations with an ACTIOTM oscillating, articulated chassis or with steering wheels, mono-directional or with RGSTM reversible steering. What sets this Tora Series of tractors apart is their advanced hydraulics and high-level operating comfort.

The model on display at Fieragricola is the SRX 6800 Tora, a reversible and articulated isodiametric tractor with a 66 hp Stage 5 engine. Agile and narrow at only 98 cm, it is the ideal tractor for rowed crops. Easily manoeuvrable, thanks to its articulated frame and short wheelbase, it is fitted with double, oil bath, disk brakes and an integrated mechanical Superbrake system. In addition, the powerful load-sensing hydraulic system, with a flow rate of over 50 l/min, allows the tractor to be fitted with a variety of either trailing or push along equipment. The new Hydraulic Remote Control device allows complete management of the tractor’s equipment. It can be fitted with the new 4-upright, REDCab on request.

The Major Series

Tigrecat 6800 – Steering Transporter

The Tigrecar 6800 is the new Antonio Carraro transporter from the Major Series, destined for specialised agriculture. It is a 66hp, 4-cylinder, compact transporter with good handling designed to offer the sector’s operators every comfort. The driver seat is ample and its central tunnel, devoid of obstacles, guarantees easy access aboard. Each technical solution was designed to offer maximum operative wellbeing. It has a 12+12 speed gearbox with inverter and the synchronised PTO is set at 540 rpm. Along with the oil bath disk brakes it can come with Superbrake, an extra braking system to be used for stopping safely on slopes. The new transporter is fitted with a new hydraulic system with continual adjustable flow, consisting of one adjustable and one normal double effect distributor for a total of 4 couplings. The new body is characterised by flush handles that don’t stick out from the box’s profile and the opening of the rear side is automatic. The Tigrecar 6800 can be fitted with several new accessories: LED working headlights, an accessory box, 2 rear-view, telescopic mirrors. It is also available with agricultural-industrial tyres. On request, the transporter can be fitted with a closed cab.

The R Series

Compact top of the range

The tractors in the Ergit R range are designed for those who work in extreme conditions. They can be defined as a distillate of top-level design and performance. Ergonomic despite their small size, they represent a real turning point for those working amongst rowed crops.

On display at Fieragricola is the TGF 8900 R, fitted with a Kubota, Common Rail, diesel, Stage 5 engine with 74.2 hp power. This mono-directional model with larger rear wheels is the specialist tractor par excellence for farmers working under leafy crops in extreme situations: on slopes, on uneven terrain, in greenhouses. With the TGF, the operator is granted the lowest driving position in its category: only 1740 mm from the ground.

Its excellent traction, achieved thanks to the equal distribution of its weight over the ground, provides this tractor with perfect ground grip and low soil compaction. The TGF 8900 R is available with a rollbar or with a super-low-profile Protector 100 cab, which is pressurised and certified in Category 4 thus guaranteeing total operator protection from dust, gas and aerosols.
